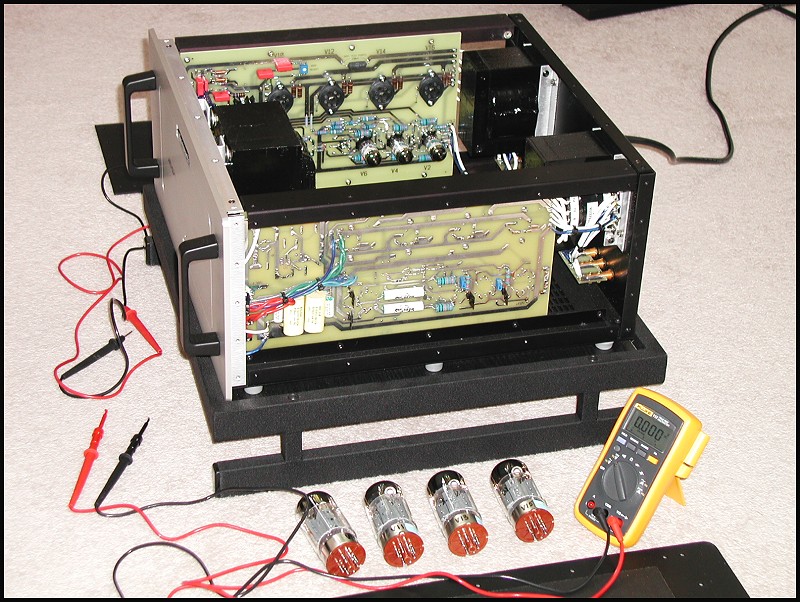

Most of the adjustments and measurements will be made toward the lower right quadrant of the circuit board. The left and right channel circuit boards are pretty much identical and the same adjustments need to be made for both channels. Click photo to move to next picture.
